Foot Switches

Single, double, and triple pedal versions are available.

Machine building, automation, operator stations, and industrial process control.

Choose by the number of independent foot commands required: one, two, or three.

The range uses a high-grade Aluminium 6000 protective shroud.

It improves mechanical protection and helps prevent unintended actuation in demanding environments.

Red, yellow, and black variants are available by item code.

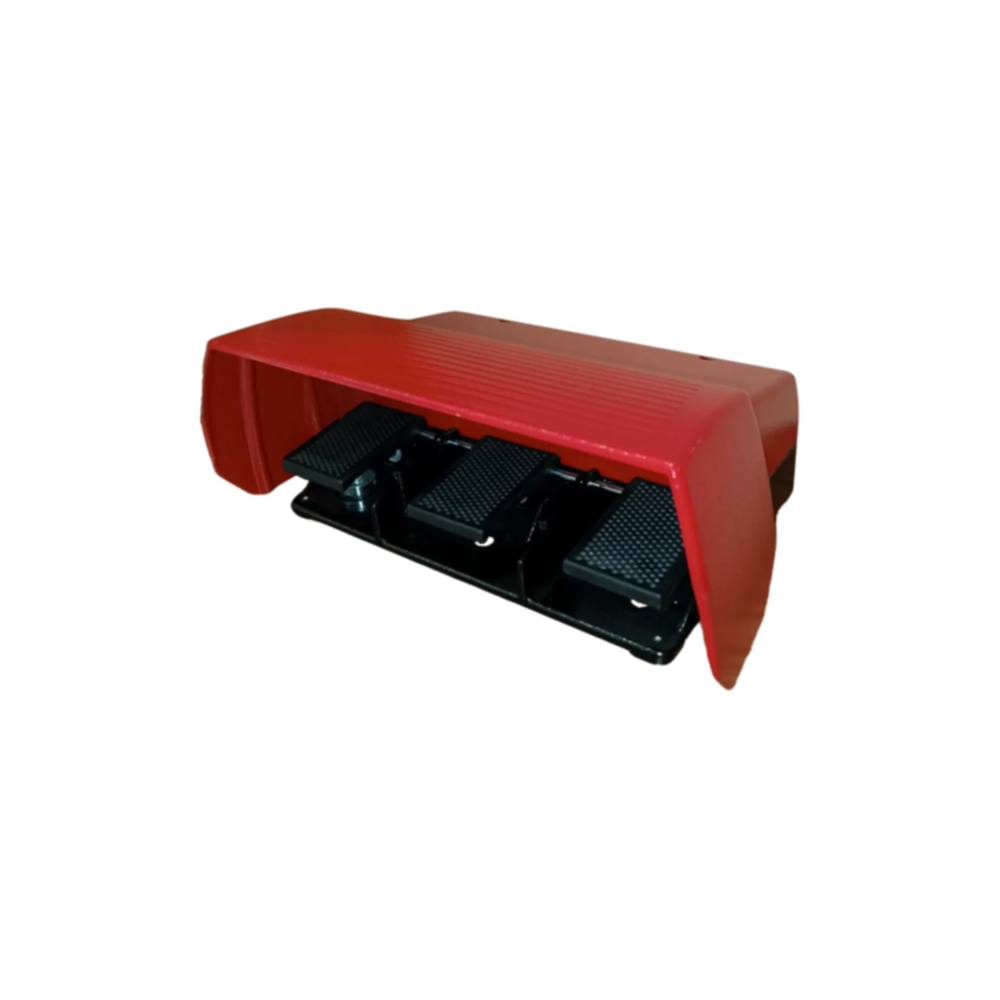

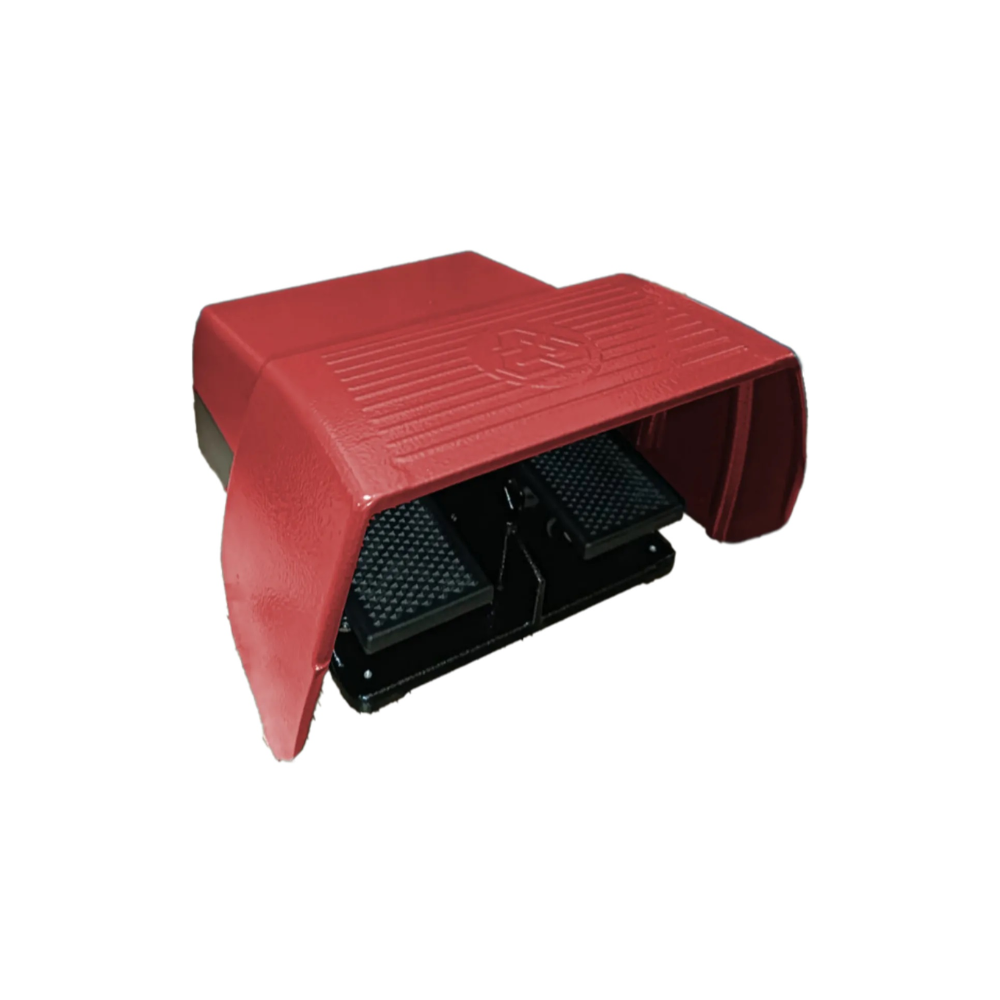

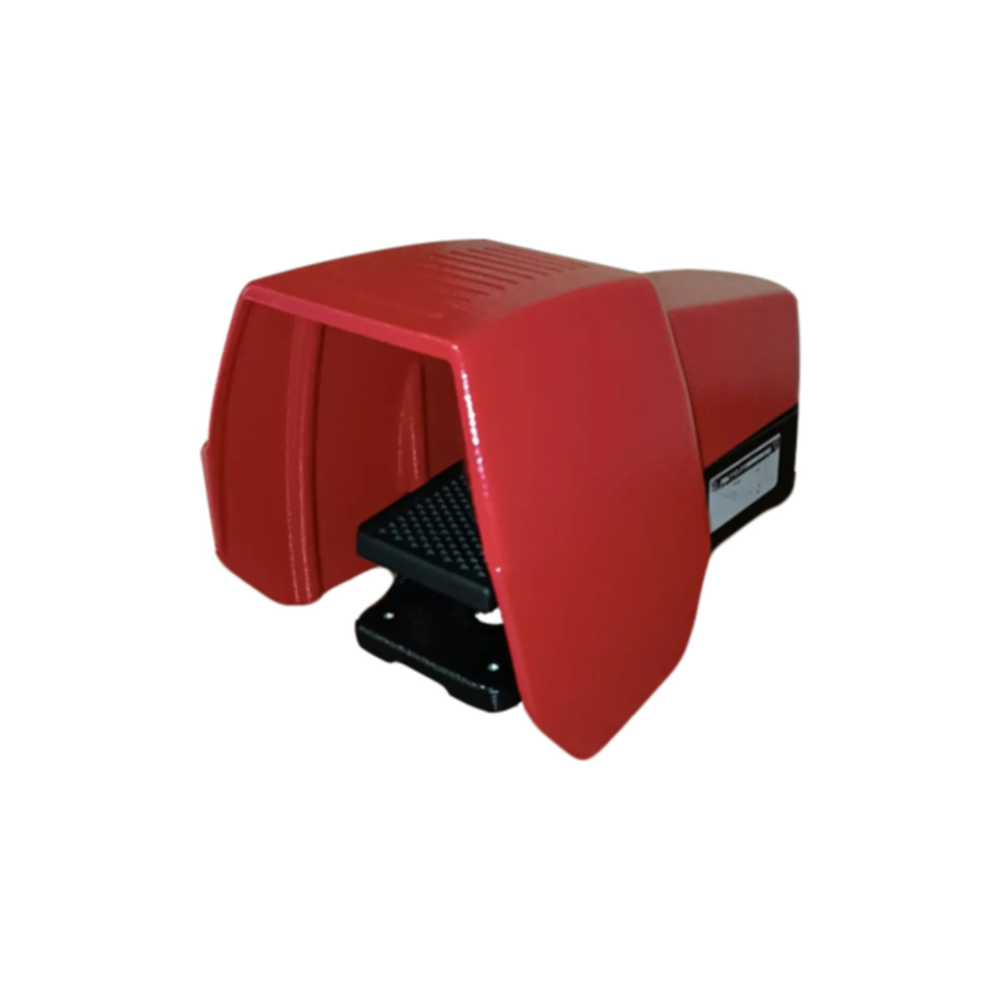

Single: 155 x 150 x 265 mm; double: 275 x 150 x 250 mm; triple: 407 x 150 x 250 mm.

The foot switch range is designed for -40 C to +80 C.

The platform is rated for up to 20 million operating cycles.

Up to 3600 operating cycles per hour.

Typical values include Ith 10 A and Uimp 6 kV, with operating ratings depending on contact configuration.

Contact block protection is typically IP20 at terminals and IP40 at contacts.

Yes, safety-related concepts can use positive-opening NC contacts according to the machine safety design.

EN 60947-1, EN 60947-5-1, EN ISO 14119, EN ISO 12100, EN 60529, and EN IEC 63000 are relevant references.

IMQ, UL/cULus, CCC, EAC, EU DoC, and UKCA documentation are available at series level.

Yes, 2D drawings and technical documentation are available for engineering workflows.

Yes, the shared platform logic simplifies standardization across different machine models.

Standardized versions support faster assembly, replacement, and maintenance planning.

Pedal count, color, contact configuration, electrical rating, wiring concept, and safety function.

Durable industrial foot control with clear variant logic, strong documentation, and predictable machine integration.
